Bihexágono fraccional de 1 "


1 bihexágono fraccional

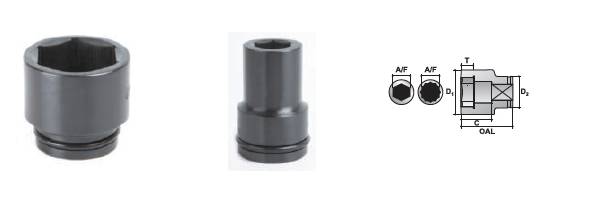

A / F : tamaño normal en planos
D1 : Diámetro exterior máximo. extremo del enchufe
D2 : extremo de accionamiento cuadrado de diámetro exterior máximo
OAL : Longitud total nominal
T : profundidad mínima de la forma del encaje
C : profundidad de holgura del perno
A / F
pulgada
MODELO
Número
D1
pulgada
D2
pulgada
T
pulgada
C
pulgada
OAL
pulgada
Peso
libras
3/4
13/16
7/8
16 12DH
16 13DH
16 14DH
1.417
1.496
1.575
2.008
2.008
2.008
0.551
0.551
0.551
0.984
0.984
0.984
2.165
2.165
2.165
1.13
1.13
1.14
15/16
1
1.1/16
16 15DH
16 16DH
16 17DH
1.654
1.772
1.811
2.008
2.008
2.008
0.630
0.630
0.630
1.063
1.063
1.063
2.244
2.244
2.244
1.20
1.24
1.25
1.1/8
1.3/16
1.1/4
16 18DH
16 19DH
16 20DH
1.890
1.969
2.047
2.008
2.126
2.126
0.709
0.709
0.709
1.142
1.142
1.142
2.323
2.323
2.323
1.29
1.45
1.49
1.5/16
1.3/8
1.7/16
16 21DH
16 22DH
16 23DH
2.126
2.126
2.244
2.126
2.126
2.126
0.787
0.787
0.787
1.220
1.220
1.220
2.402
2.402
2.402
1.54
1.51
1.68
1.1/2
1.9/16
1.5/8
16 24DH
16 25DH
16 26DH
2.323
2.362
2.520
2.126
2.126
2.126
0.886
0.886
0.945
1.339
1.339
1.417
2.520
2.520
2.598
1.86
2.88
2.13
1.11/16
1.3/4
1.13/16
16 27DH
16 28DH
16 29DH
2.559
2.677
2.677
2.126
2.126
2.126
0.945
0.945
1.024
1.417
1.417
1.496
2.598
2.598
2.677
2.15
2.27
2.25
1.7/8
1.15/16
2
16 30DH
16 31DH
16 32DH
2.795
2.795
2.963
2.126
2.126
2.126
1.024
1.024
1.102
1.496
1.496
1.575
2.677
2.677
2.756
2.37
2.37
2.67
2.1/16
2.1/8
2.3/16
16 33DH
16 34DH
16 35DH
2.963
3.110
3.150
2.126
2.441
2.441
1.102
1.102
1.181
1.575
1.575
1.732
2.756
2.756
2.913
2.67
3.13
3.21
2.1/4
2.5/16
2.3/8
16 36DH
16 37DH
16 38DH
3.307
3.307
3.405
2.441
2.441
2.441
1.181
1.181
1.260
1.732
1.732
1.850
2.913
2.913
3.031
3.50
3.50
3.77
2.7/16
2.1/2
2.9/16
16 39DH
16 40DH
16 41DH
3.543
3.543
3.711
2.441
2.441
2.441
1.339
1.339
1.417
1.929
1.929
2.008
3.110
3.110
3.189
4.17
4.17
4.38
2.5/8
2.11/16
2.3/4
16 42DH
16 43DH
16 44DH
3.711
3.898
3.898
2.441
3.386
3.386
1.417
1.496
1.496
2.008
2.126
2.126
3.189
3.307
3.307
4.38
6.19
6.19
2.13/16
2.7/8
2.15/16
16 45DH
16 46DH
16 47DH
3.898
4.094
4.094
3.386
3.386
3.386
1.496
1.575
1.575
2.126
2.205
2.205
3.307
3.504
3.504
6.19
6.77
6.77
3
3.1/16
3.1/8
16 48DH
16 49DH
16 50DH
4.094
4.425
4.425
3.386
3.386
3.386
1.575
1.654
1.654
2.205
2.283
2.283
3.504
3.583
3.583
6.77
7.80
7.80
3.3/16
3.1/4
3.5/16
16 51DH
16 52DH
16 53DH
4.425
4.651
4.742
3.386
3.386
3.386
1.654
1.732
1.732
2.283
2.362
2.362
3.583
3.661
3.661
7.80
8.13
8.48
3.3/8
3.7/16
3.1/2
16 54DH
16 55DH
16 56DH
4.742
4.803
4.803
3.386
3.386
3.386
1.732
1.811
1.811
2.362
2.441
2.441
3.661
3.740
3.740
8.48
8.44
8.44
3.5/8
3.3/4
3.7/8
16 58DH
16 60DH
16 62DH
5.118
5.118
5.276
4.173
4.173
4.173
1.890
1.890
1.969
2.520
2.520
2.598
3.819
3.819
3.898
11.29
11.29
11.44
